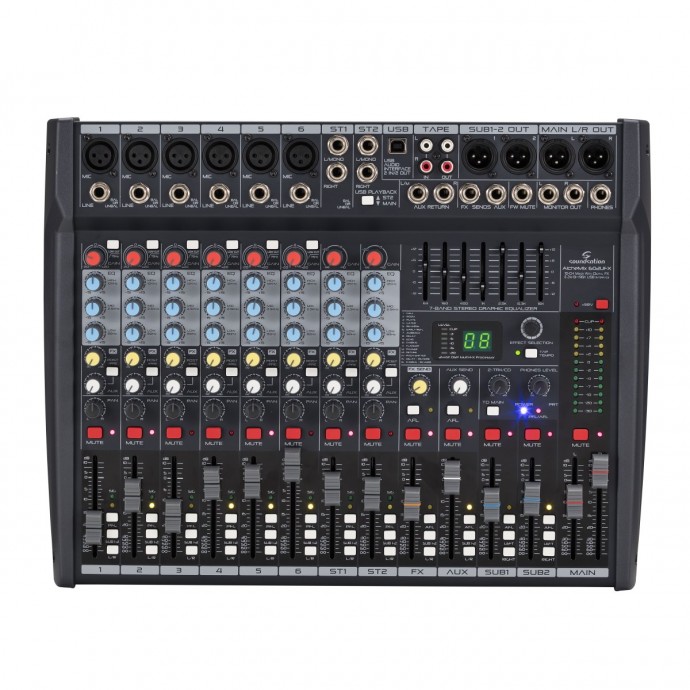

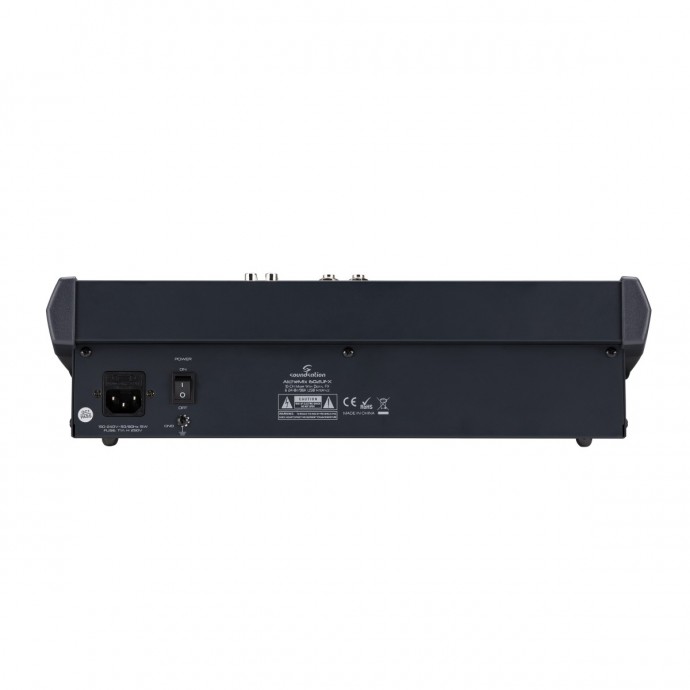

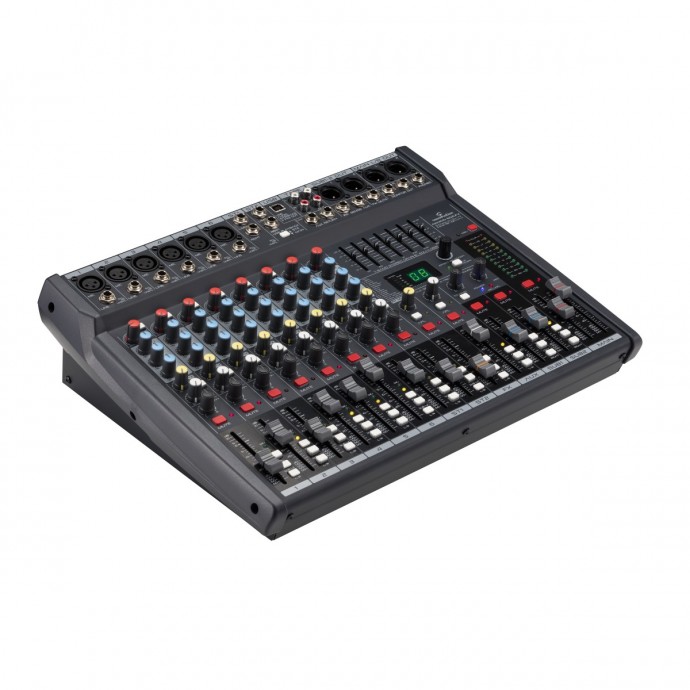

SOUNDSATION Alchemix 602UFX Audio Mixer
Short description
- Configuration 6 Mic/Line + 2 Stereo
- Nominal Gain (Mic/Line/Stereo Line) 60dB, 40dB, 20dB
- Max Gain (Mic/Line/Stereo Line) 80dB, 60dB, 40dB
- Mic Input Sensitivity (Gain Min/Gain Max) -10dBu/-60dBu
- Line Input Sensitivity (Gain Min/Gain Max) +10dBu/-40dBu
- Stereo Line Input Sensitivity (Gain Min/Gain Max) +10dBu/-20dBu
- Aux Return Input Sensitivity 0dBu / 2-Track Input Sensitivity: -2dBu
- Mic/Line Max Input Level +24dB
- Stereo Line/Aux/2-Track Max Input Level +20dB
- Mic Input Impedance 2kohm Balanced
- Line/Aux Input Impedance 20kohm (Balanced)/10kohm (Unbalanced)
- Tape Record Inputs Impedance 10kohm Balanced
- Main/Group/Monitor/Aux Send Output Levels 0dBu (0.775V RMS) Nominal/ +22dBu (10V RMS) Max
- Record Out Output Levels -2dB (600mv RMS)/ +22dBu (10V RMS) Max
- Main/Group/Monitor/Aux Send Output Impedance 75ohm
- Record Output Impedance 1kohm
- Phones Output Impedance 33ohm min
- Frequency Response 20Hz to 20kHz (+0/-2dB)
